Deep Draw Metal Stamping
Professional metal deep drawn stamping part fabrication service. Top quality, low prices, OEM support.
Deep Draw Stamping

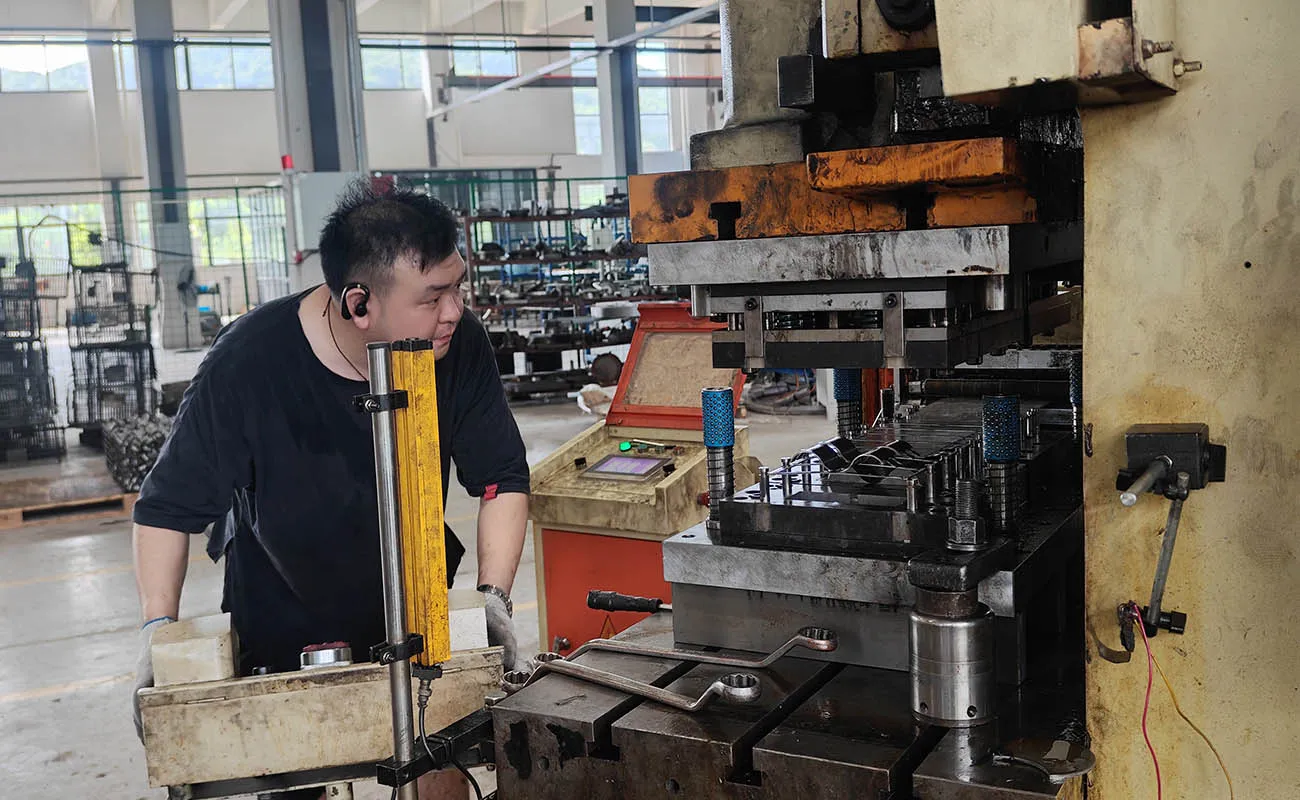

The deep drawing processes we can provide include single-die deep drawing and progressive deep drawing. The materials that can be processed include copper, iron, stainless steel, aluminum, titanium, titanium alloy, Monel alloy, nickel-based alloy, Kovar alloy, Invar steel, and more.
Fabrication Services
Our deep drawing and stamping services are primarily aimed at automotive parts factories and solenoid valve manufacturers. Currently, our services have expanded to include the processing and mass production of deep-drawn components for the medical industry and the aerospace sector.
Cooperation Case
Our Partner
The companies we collaborate with include Facet S.r.l from Italy, Sensor Technik GmbH from Germany, as well as Solenoid System Inc. and Standard Electric Manufacturing Company from the United States.
Our advantage
Precision Measurement
Key product tolerances are rigorously verified using plug gauges. Our dedicated sorting and inspection rooms guarantee meticulous quality control throughout the production process, ensuring precision and consistency in our products.
Quality Control
Prior to production, the initial piece is approved by engineering and quality staff. Simple measurements of dimensions and appearances are conducted during production. Operators oversee online inspections, while quality personnel perform TS16949-compliant checks.
Material Saving
Our utilization of advanced vision-based cutting techniques not only maximizes the efficiency of raw material usage but also enhances the precision of our manufacturing processes. By incorporating progressive dies and robotic arms, we ensure streamlined and accurate operations, optimizing production output and quality.
Process Optimization
We specifically focus on thinning thick materials during deep drawing processes, maintaining the original material thickness at the bottom while reducing wall thickness. By ironing and deep drawing the outer wall, we achieve smoother outer walls and straight walls, addressing the issue of demolding difficulties. This technique is integrated within progressive deep drawing.
We possess a special ability in the deep drawing process to minimize the outer radius, inner radius, and flange corner radius, even achieving a perfect 90° angle. This technique is commonly applied in the production of products such as electromagnetic valve housing, spring seats, and magnetic shielding rings.
Project Case Studies
Strictly Confidential
We will sign a Non-Disclosure Agreement (NDA) with our partners to strictly protect the confidentiality of customer drawings, materials, and prototypes.
